The Eagle Pro ELL Series features a low- profile, flat design for use in confined spaces. An alloy steel lock nut allows for mechanical load holding. The ELL series comes equipped with a titling saddle standard. The overflow port functions as a stroke limiter. Dust covers are included with the rugged, EAB-201A female coupler. The Eagle Pro ELL Series complies with ASME B30.1 standards.
Products
The Eagle Pro ELL Series features a low- profile, flat design for use in confined spaces. An alloy steel lock nut allows for mechanical load holding. The ELL series comes equipped with a titling saddle standard. The overflow port functions as a stroke limiter. Dust covers are included with the rugged, EAB-201A female coupler. The Eagle Pro ELL Series complies with ASME B30.1 standards.

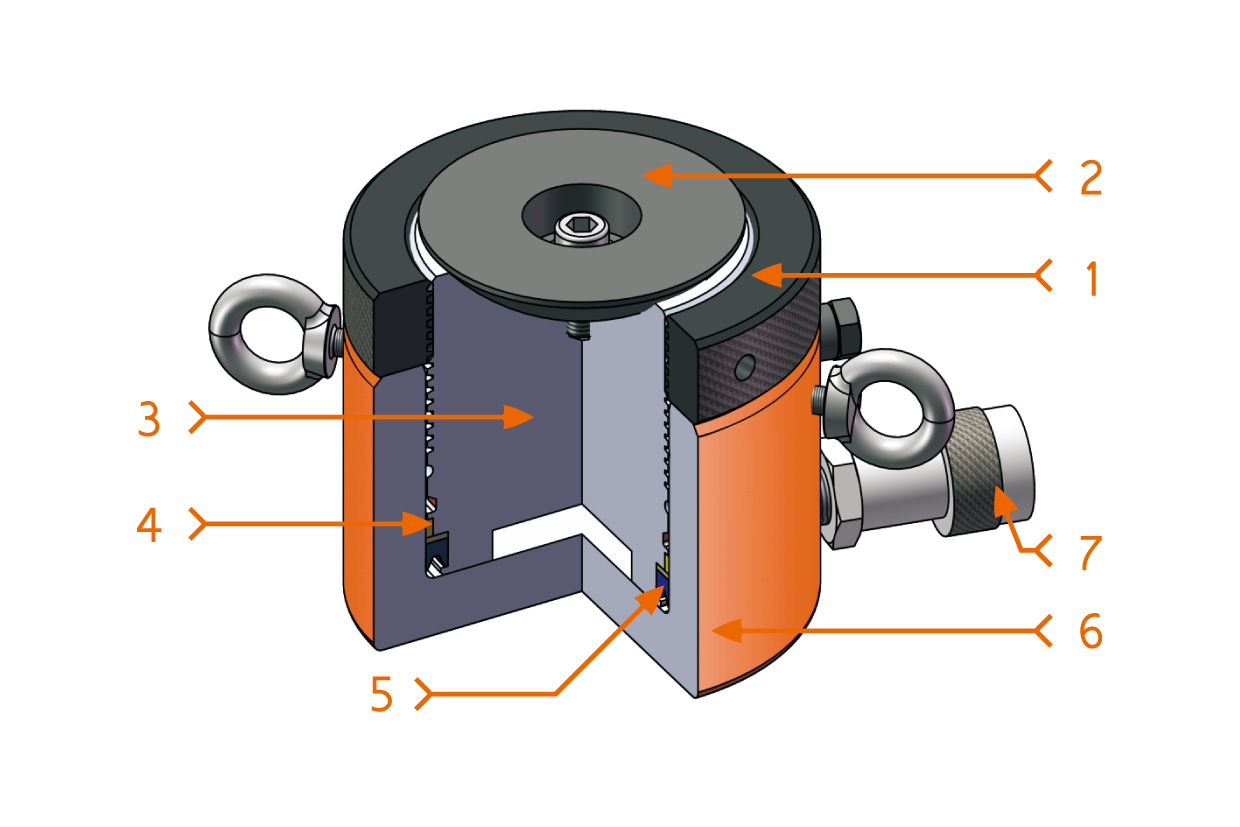

1. High strength steel lock nut.
2. Tilting saddle is standard.
3. Hardened and chromed, threaded piston reduces wear and corrosion.
4. high strength composite bearings provides support for off center loads withou damaging the cylinder walls.
5. Industrial U-cup style seal prevents costly leaks.
6. High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
7. Standard EAB-201A coupler provided with dust cap.
ELL-Series—-Low-Profile-with-Locking-Collars
| Model | Cylinder Capacity @ 10,000 PSI (700 BAR) | Stroke | Cylinder Effective Area | Oil Capacity |
|---|---|---|---|---|
| Metric Ton (US TON) | IN | IN2 | IN3 | |
| ELL-602 | 60 (66) | 1.97 | 13.42 | 26.41 |
| ELL-1002 | 100 (110) | 1.97 | 22.18 | 43.65 |
| ELL-1602 | 160 (176) | 1.77 | 35.00 | 62.31 |
| ELL-2002 | 200 (220) | 1.77 | 43.94 | 77.82 |
| ELL-2502 | 250 (275) | 1.77 | 56.28 | 99.67 |
| ELL-4002 | 400 (440) | 1.77 | 85.48 | 151.39 |
| ELL-5002 | 520 (572) | 1.77 | 113.24 | 200.55 |
| Model | Collapsed Height | Extended Height | Lock Nut Thickness | Outside Diameter | Saddle Diameter | Piston Diameter | Weight |
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| IN | IN | IN | IN | IN | IN | LBS | |
| ELL-602 | 4.91 | 6.88 | 1.10 | 5.50 | 3.77 | TR104 X4 | 31.90 |
| ELL-1002 | 5.38 | 7.35 | 1.22 | 6.88 | 4.95 | TR134.5 X 6 | 51.70 |
| ELL-1602 | 5.82 | 7.58 | 1.57 | 8.61 | 6.29 | TR170 X 6 | 91.30 |
| ELL-2002 | 6.09 | 7.86 | 1.69 | 9.63 | 7.07 | TR 190 X6 | 125.40 |
| ELL-2502 | 6.25 | 8.02 | 1.73 | 10.81 | 7.86 | TR215 X 6 | 162.80 |
| ELL-4002 | 7.00 | 8.76 | 2.16 | 13.76 | 9.83 | TR265 X 6 | 294.80 |
| ELL-5002 | 7.55 | 9.31 | 2.44 | 15.72 | 11.40 | TR305 X 6 | 415.80 |
| Model | Cylinder Capacity @ 10,000 PSI (700 BAR) | Stroke | Cylinder Effective Area | Oil Capacity |
|---|---|---|---|---|
| Metric Ton (US TON) | MM | CM2 | CM3 | |
| ELL-602 | 60 (66) | 50 | 86.6 | 433 |
| ELL-1002 | 100 (110) | 50 | 143.1 | 715 |
| ELL-1602 | 160 (176) | 45 | 226.9 | 1021 |
| ELL-2002 | 200 (220) | 45 | 283.4 | 1275 |
| ELL-2502 | 250 (275) | 45 | 362.9 | 1633 |
| ELL-4002 | 400 (440) | 45 | 551.3 | 2481 |
| ELL-5002 | 520 (572) | 45 | 730.3 | 3286 |
| Model | Collapsed Height | Extended Height | Lock Nut Thickness | Outside Diameter | Saddle Diameter | Piston Diameter | Weight |
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| MM | MM | MM | MM | MM | MM | KG | |
| ELL-602 | 125.00 | 175.00 | 28 | 140 | 96 | TR104 X4 | 14.5 |
| ELL-1002 | 137.00 | 187.00 | 31 | 175 | 126 | TR134.5 X 6 | 23.5 |
| ELL-1602 | 148.00 | 193.00 | 40 | 220 | 159 | TR170 X 6 | 41.5 |
| ELL-2002 | 155.00 | 200.00 | 43 | 245 | 180 | TR 190 X6 | 57 |
| ELL-2502 | 159.00 | 204.00 | 44 | 275 | 200 | TR215 X 6 | 74 |
| ELL-4002 | 178.00 | 223.00 | 55 | 350 | 250 | TR265 X 6 | 134 |
| ELL-5002 | 192.00 | 237.00 | 62 | 400 | 290 | TR305 X 6 | 189 |
| Model | Description | Repair Sheets | Instructions | CAD | |||
|---|---|---|---|---|---|---|---|
| Series | Series | Series | Series | ||||
| ELL-602 | S/A/LL CYLINDER 60 TON | ||||||
| ELL-1002 | S/A/LL CYLINDER 100 TON | ||||||
| ELL-1602 | S/A/LL CYLINDER 160 TON | Download | |||||
| ELL-2002 | S/A/LL CYLINDER 200 TON | Download | |||||
| ELL-2502 | S/A/LL CYLINDER 250 TON | Download | |||||
| ELL-4002 | S/A/LL CYLINDER 400 TON | Download | |||||
| ELL-5002 | S/A/LL CYLINDER 500 TON | Download | |||||
